GP3188



Go Back

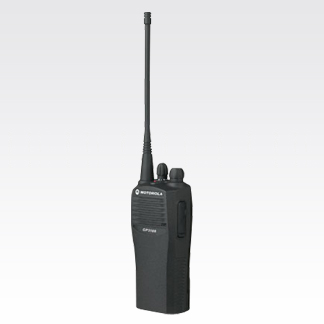

The GP3188 is Motorola’s latest portable Two-Way Radio, featuring extended talktime of 19 hours on low power and 14 hours on high power for high productivity. The lightweight and ergonomically designed radio comes with new Battery Latch Lock Features that keeps the power source firmly fastened to the radio, allowing continuous communication. It also offers crystal clear audio to users in security, hospitality, manufacturing and construction industries.




a




FEATURES AND BENEFITS


Unsurpassed Audio Quality

• Motorola’s Companding™ technology enables, clearer and stronger audio quality, allowing messages to be heard even
  in a high noise environment.

Efficient

• 19 hours talktime on low power and 14 hours talktime on high power for greater productivity.
• Crystal clear audio that enables you to communicate even in noisy environment.
• Battery Latch Lock Feature keeps the power source firmly fastened to the radio, allowing continuous communication.
• LED battery indicator provides status of battery life at a glance.

Easy To Use

• Radio can be programmed quickly and easily through the user-friendly Microsoft Windows® based Customer
  Programming software.
• Sticky Permanent monitor allows user to stay on monitor without consistently pressing the programmable button.

Durable and Reliable

• Comply with MIL-STD 810 standards.

RADIO FEATURES

Signalling
DTMF		 Number of channels
16

PHYSICAL CHARACTERISTICS
Keypad :- None

Emergency button :- Yes		 Display :- No display

Available option board :- No
Dimensions H x W x D (with standard battery)
126.5mm x 61.5mm x 43mm (With Standard NiMH battery)		 Weight (with standard battery)
421gms (with standard NiMH battery)

PERFORMANCE CHARACTERISTICS

Battery life (based on a 05/05/90 duty cycle)
10 hours (High Power), 13 hours (Low Power)-Wth Standard NiMH battery		 Frequency range
146-174MHz 403-438MHz, 438-470MHz, 465-495MHz
Power output
1-4W (UHF), 1-5W (VHF)

USER ENVIRONMENT

Mil spec :- 810 C, 810 D, 810 E Intrinsically safe :- Yes
