GP338 Plus



Go Back

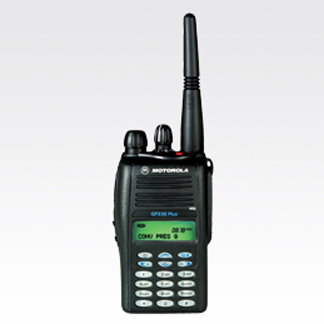

Motorola GP338 Plus display radio - the smallest in Motorola's Professional Series. It is compact, light and fit easily into the palm of your hand. A versatile alternative for those who require additional features to meet expanding communication needs.




a




FEATURES AND BENEFITS



Advanced Audio Technology

• Motorola's special voice compression and low level expansion technology enable crisper, clearer and stronger audio
  quality, allowing you to keep communicating even in a noisy environment.

Versatile

• Motorola's unique MDC signalling allows the transfer of data communications at the high speed rate of 1200 bits per
  second.
• The Forward error correction technology enables radio to receive message, like PTT-ID display, radio status and send
  out remote killing signal or emergency call even though the voice signal is too weak to be heard.
• Large display with 14 Character Alpha Numeric Dot Matrix allows immediate communication of vital information. The
  keypad & display illuminations provide the needed visibility to operate your radio in the dark.
• Name and tone tagging with capability to assign 8 different ringing tones and visual caller ID to 8 specific users/
  talkgroups
• The built-in voice-activated feature (VOX) enables users to transmit their message in a hands-free environment, without
  pressing the push-to-talk button.
• The GP338 Plus is intrinsically safe to operate in hazardous atmosphere by the US Factory Mutual standard.
• Proving up to a maximum of 128 channels allow greater flexibility in organising different work group.


Compact but Rugged

• Motorola's Accelerated Life Test
• MIL-STD 810C, D and E



RADIO FEATURES


Signalling
Quick Call II, DTMF, limited MDC1200
Number of channels
128

PHYSICAL CHARACTERISTICS

Keypad :- Yes

Emergency button :- Yes
Display :- Yes

Available option board :- Yes
Dimensions H x W x D (with standard battery)
101.5 mm x 55.5 mm x 33 mm ( With slim Lilon battery)
Weight (with standard battery)
Weight - 250gms ( With Slim Lilon battery) (instead of 265gms)

PERFORMANCE CHARACTERISTICS

Battery life (based on a 05/05/90 duty cycle)
8 hours (High Power), 10 hours (Low Power) - With Slim Lilon battery
Frequency range
136-174MHz / 330-400MHz / 403-470 MHz/ 450-527MHz
Power output
6W 5W (VHF) 4W (UHF)

USER ENVIRONMENT

Mil spec :- 810 C, 810 D, 810 E Intrinsically safe :- Yes
