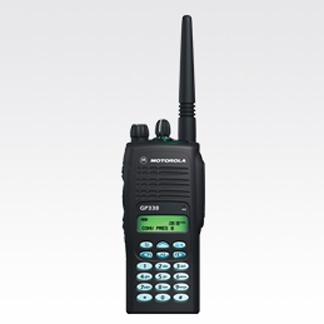

GP338



Go Back



The 128-Channel GP338 is essential for growing organisations because of its unique versatility. Whatever your profession, this is the radio that grows with you.




a




FEATURES AND BENEFITS



Unsurpassed Audio Quality

• Motorola's special voice compression and expansion technology called X-PAND enables crisper, clearer and stronger
  audio quality, allowing you to keep communicating, even in noisy environment.

Powerful

• Motorola’s unique MDC signaling allows the transfer of data communications at the high-speed rate of 1200 bits per
  second.
• The Forward error correction technology enables radio to receive message, like PTT-ID display, radio status and send
  out remote killing signal or emergency call even though the voice signal is too weak to be heard.
• Expandable & easy to install in the field, by adding option boards like voice storage board & DTMF Decoder boards
  whenever your needs arise. The option board also allows up to 2 minutes of recording.
• The plug-in mandown option board feature will trigger an emergency procedure in situations where the radio is
  horizontal or still for longer than a pre-programmed time. It is critical for radio users who work alone or in isolated
  environments.
• The GP338 is certified by the US Factory Mutual standard intrinsically safe to operate in hazardous atmosphere.
• The built-in voice-activated feature (VOX) enables users to transmit their message in a hands-free environment, without
  pressing the push-to-talk button.

Versatile

• Large display with 14 Character Alpha Numeric Dot Matrix allows immediate communication of vital information. The
  keypad & display illuminations provide the needed visibility to operate your radio in the dark.
• Received Signal Strength Indicator displays signal strength in the vicinity where you operate in.
• Name and tone tagging with capability to assign 8 different ringing tones and visual caller ID to 8 specific users/
  talkgroups Easy-to-access, one-touch Emergency Siren button with piercing alarm to seek help in critical situation.
• Lightweight Lithium Ion battery option makes the radio one of the lightest in its range.

Compact & Reliable

• Motorola's Accelerated Life Test
• MIL-STD 810C, D and E



RADIO FEATURES


Signalling
Quick Call II, DTMF, limited MDC1200
Number of channels
128

PHYSICAL CHARACTERISTICS

Keypad :- Yes

Emergency button :- Yes
Display :- Yes

Available option board :- Yes
Dimensions H x W x D (with standard battery)
137 mm x 57.5 mm x 37.5 mm ( With Standard Hi-Cap.NiMH battery)
Weight (with standard battery)
428gms (With Standard Hi-Cap.NiMH battery)

PERFORMANCE CHARACTERISTICS

Battery life (based on a 05/05/90 duty cycle)
8 hours (High Power), 10 hours (Low Power) - With Standard Hi- Capacity NiMH battery
Frequency range
136-174MHz / 330-400MHz / 403-470 MHz/ 450-527MHz
Power output
5W (VHF) 4W (UHF)

USER ENVIRONMENT

Mil spec :- 810 C, 810 D, 810 E Intrinsically safe :- Yes
