GP328 Plus

Go Back

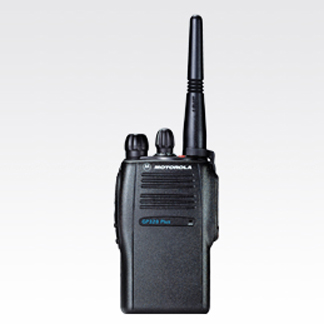

The GP328 Plus is Compact, easy to use and versatile. With Motorola’s smallest non-keypad professional radio, you will never be weighed down by your communication tools anymore.
a






FEATURES AND BENEFITS



Unsurpassed Audio Quality

• Motorola's special voice compression and low level expansion technology enable crisper, clearer and stronger
  audio quality, allowing you to keep communicating even in a noisy environment

Compact but rugged

• Motorola's Accelerated Life Test
• MIL-STD 810C, D and E

User-friendly

• Motorola’s unique MDC signaling allows the transfer of data communications at the high- speed rate of 1200 bits
  per second
• The Forward error correction technology enables radio to receive message, like call alert and send out the PTT-ID
  even though the voice signal is too weak to be heard
• By pressing the emergency button in critical situations, the radio will emit a piercing alarm/siren; providing users
  with instant help alerts
• The GP328 Plus is intrinsically safe to operate in hazardous atmosphere certified by the US Factory Mutual
  standard.
• Switchable RF Power Levels: with one button, users can switch between high and low power with reference to their
  specific application to conserve battery life
• Tri-colour LED battery gauge: indicates battery status with early warning on low battery strength
• Tone Tagging allows 8 different ringing tones to be assigned to 8 specific users or talkgroups making audio caller
  identification to these 8 groups possible
• The built-in voice-activated feature (VOX) enables users to transmit their message in a hands-free environment,
  without pressing the push-to-talk button


RADIO FEATURES


Signalling
Quick Call II, DTMF, limited MDC1200
Number of channels
4, 16

PHYSICAL CHARACTERISTICS

Keypad :- None

Emergency button :- Yes
Display :- No display

Dimensions H x W x D (with standard battery)
101.5mm x 55.5mm x 33mm (with slim Lilon battery)
Weight (with standard battery)
250gms with Slim Lilon battery

PERFORMANCE CHARACTERISTICS

Battery life (based on a 05/05/90 duty cycle)
7 hours (High Power), 10 Hours (Low Power) - With Slim Lilon battery
Frequency range
136 - 174MHz / 330 - 400MHz / 403 - 470MHz / 450 - 527MHz
Power output
5W (VHF) 4W (UHF)

USER ENVIRONMENT

Mil spec :- 810 C, 810 D, 810 E Intrinsically safe :- Yes
