GM3688



Go Back

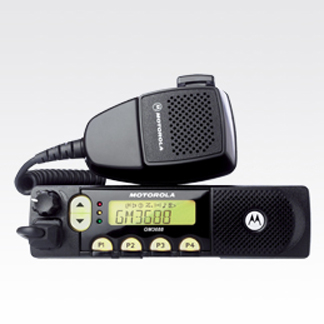

The ruggedly-built Motorola GM3688 is ideal for construction, taxi, courier and manufacturing industries. Equipped with superb audio quality, 8-character alphanumeric display, PTT ID function, 64 channels and a wide range of accessories, the GM3688 is made to grow with your fleet.




a




FEATURES AND BENEFITS



User-friendly

• 8-character alphanumeric display with icons for quick identification of radios status and incoming calls.
• LED status indicator allows clear indication of radio's operating status.
• 4 Programmable buttons provide users convenient access to the most frequently used functions.


Efficient

• 16 pin external accessory port or optional board interface allows easy expansion of radio’s capability.
• Supports MDC1200, DTMF and Quick Call II signaling standards.
• 64-channel allows users to independently program each channel for their customised needs.

Compact & Reliable

• The mobile offers voice compression and powerful 4W front firing speaker for maximum audio clarity.
• Rugged construction built to meet or exceed the stringent Motorola ALT and MIL-STD 810C,D and E.




RADIO FEATURES


Signalling
Quick Call II, DTMF, limited MDC1200
Number of channels
64

PHYSICAL CHARACTERISTICS

Keypad :- No

Emergency button :- Yes
Display :- Yes

Available option board :- Yes
Dimensions H x W x D (with standard battery)
44mm x 169mm x 118mm
Weight (with standard battery)
1.01Kg

PERFORMANCE CHARACTERISTICS

Power output
VHF- 1–25W, 25-45W UHF - 1–25W, 25-40W 350-380MHz - 1–25W, 490-527MHz - 25W, 25-40W
Frequency range
136-162MHz/146-174MHz/403-440MHz /438-470MHz/465-495MHz /490-527MHz 350-380MHz

USER ENVIRONMENT

Mil spec :- 810 C, 810 D, 810 E Intrinsically safe :- Yes
